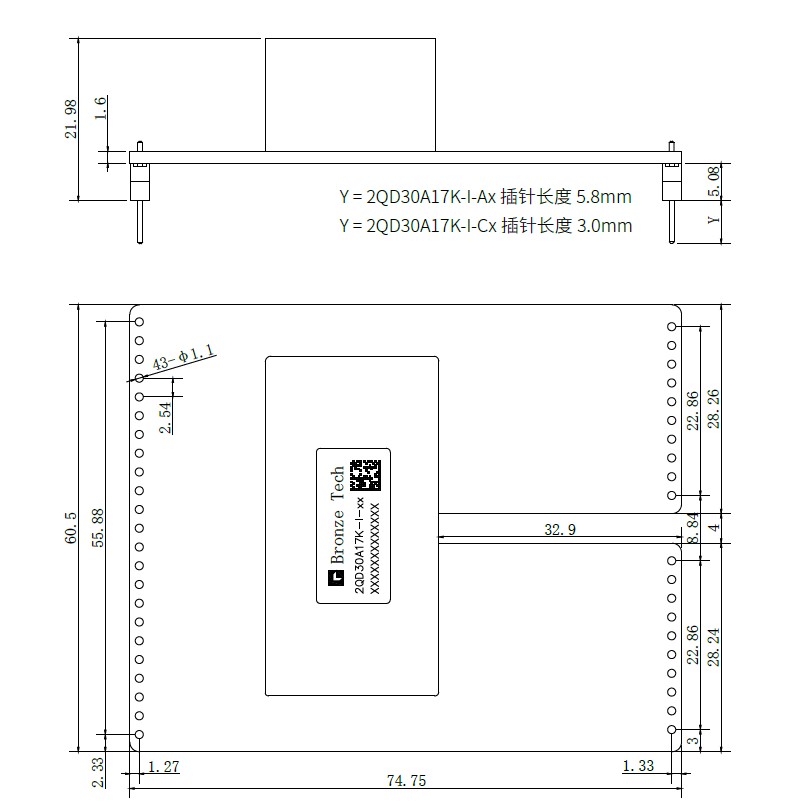

2QD30A17K-I-xx
2QD30A17K-I-xx is a high power, dual-channel compact gate driver core designed for high reliability applications.
2QD30A17K-I-xx can be used for IGBT modules with a blocking voltage up to 1700V. It can be applied to various topologies by adding proper peripheral circuitry.

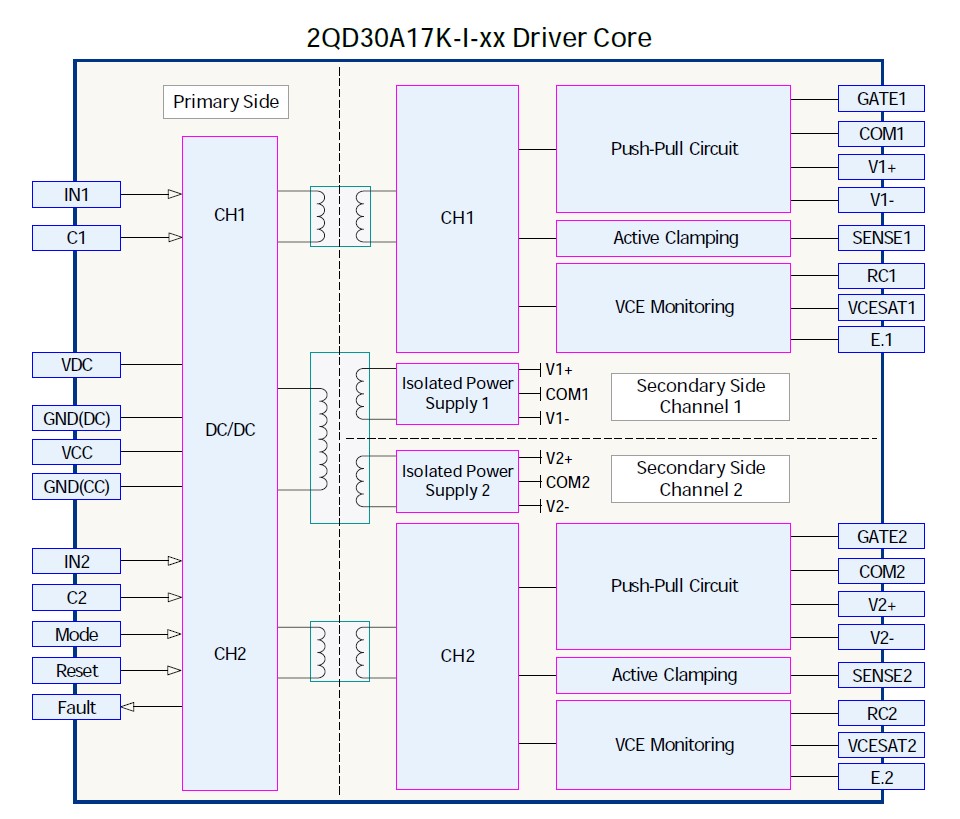

Features
Dual-channel IGBT gate driver core |
Blocking voltage up to 1700V |
Peak current ±30A |
4W output power per channel |
Up to 6000V isolation voltage |
Direct/half-bridge mode available |
Secondary side undervoltage lockout |
IGBT short-circuit protection integrated |
Active clamping integrated |
Soft shut down integrated |
UL94V-0 compliant materials |
Key parameters
| Maximum Voltage of Power Device | 1700V | Maximum Switching Frequency | 60kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -15.4V, -15.7V |
| Driving Power | 4W | Gate Driving Current | ±30A |
| Power Supply Voltage | 15V | Maximum Supply Current | 680mA |
| Operating Temperature | -40~+85℃ | Isolation Voltage | 6000Vac |
