Medium voltage converter |
Motor drive |
Traction drive |

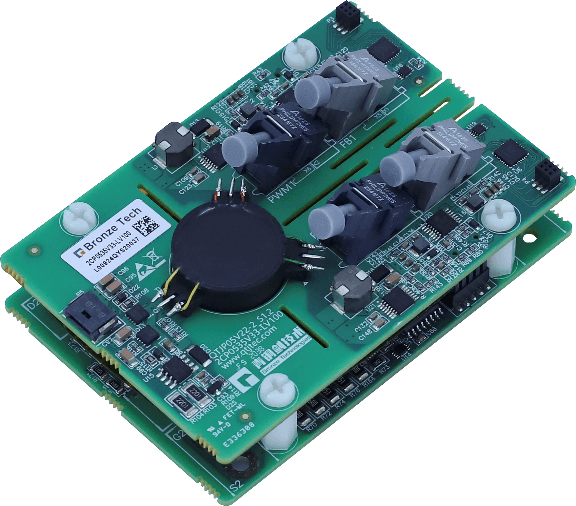

2QP0335V33-XHP

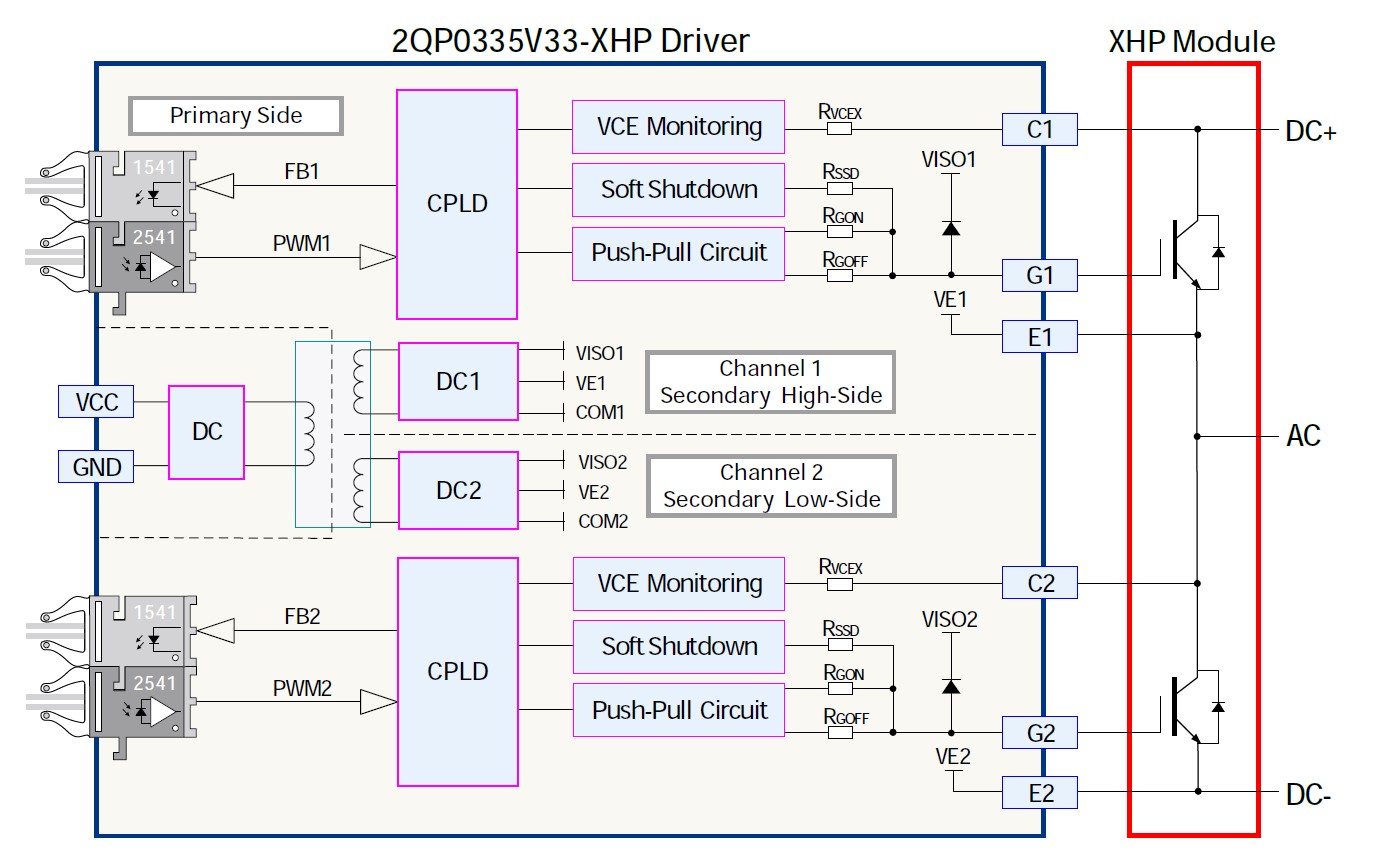

2QP0335V33-XHP is a compact dual-channel high-insulation driver for IGBT modules, designed for high-reliability high-power medium-voltage applications.
The 2QP0335V33-XHP is suitable for a variety of topology schemes built by 3300V XHP™3 packaged IGBT modules, which can be directly installed on the module without the need for transfer processing.
Features
3300V XHP™3 package plug-and-play IGBT driver |
Dual-channel IGBT gate driver |

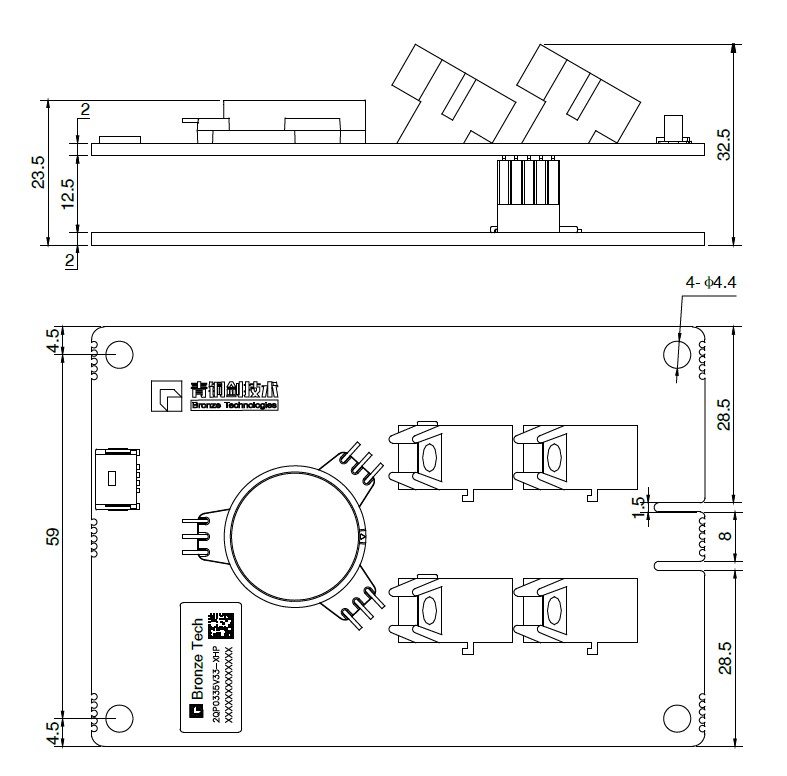

Compact design 68mm*99.5mm |
Wide supply voltage range 14V~30V |
Fiber optic input/output |
8000Vac isolation voltage |
Secondary side undervoltage lockout |
IGBT short-circuit protection integrated |
Soft shut down integrated |
Key parameters
| Maximum Voltage of Power Device | 3300V | Maximum Switching Frequency | 10kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -10V |
| Driving Power | 3W | Gate Driving Current | ±35A |
| Power Supply Voltage | 15V | Maximum Supply Current | -mA |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side Insulation Voltage | 8000Vac |
